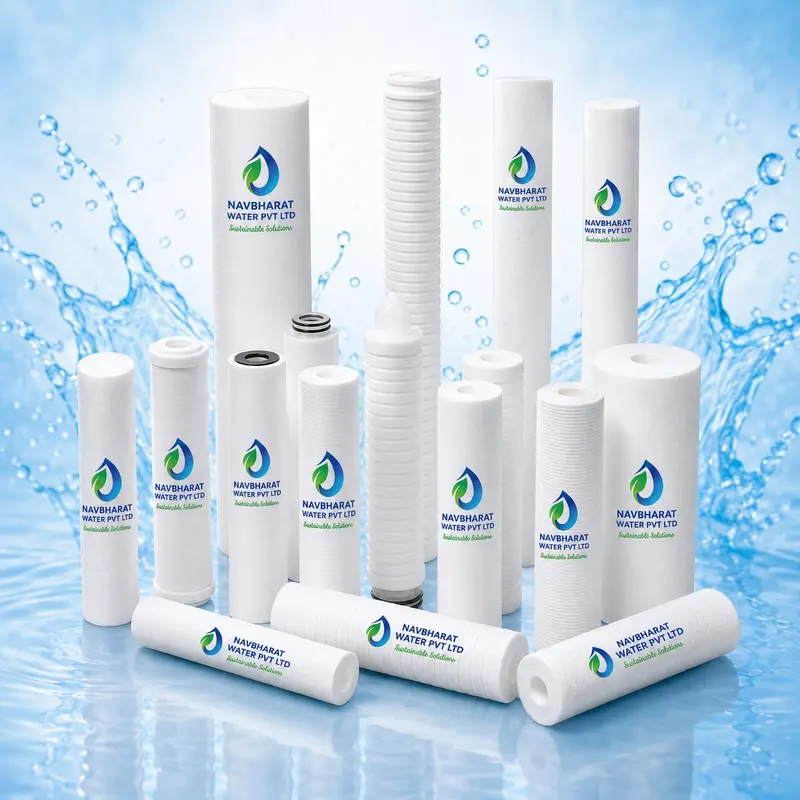

NWPL Pleated Filter Cartridge
0.2–30 micron · DOE & SOE · 10″/20″/30″/40″
Pleated polypropylene cartridge in DOE and SOE end configurations. Large filtration area with precision from 0.2 micron — for fine and sterile-grade filtration duties.
Specifications
| Type | Pleated cartridge — DOE & SOE type |
|---|---|
| Material | Polypropylene (media & cage) |
| Micron Rating | 0.2, 0.45, 1, 5, 10, 30 micron |
| Filter Lengths | 10″, 20″, 30″, 40″ |
| Diameter | 2–3″ |
| Brand | Navbharat Water (NWPL) |
| Country of Origin | Made in India |
| Certification | ISO 9001:2015 |
Where it's used
- RO Pre-filtration
- Drinking Water
- Electronics High-Purity Water
- Pharmaceutical
- Food, Wine & Beverage
- Industrial & Process Water
Related solutions
What it is and when to use it
The NWPL pleated filter cartridge uses pleated polypropylene media and cage in DOE and SOE end configurations, with ratings from 0.2 to 30 micron. Use it for fine and sterile-grade filtration, where a large media area delivers precise retention with lower pressure drop than a depth cartridge of the same rating.
Pleating folds a thin, fine filter medium into a compact cylinder, packing much more surface area into the same cartridge size. That extra area keeps pressure drop low and flow high at fine ratings, which is why pleated cartridges are used for final filtration, high-purity water and pharmaceutical duties.
NWPL offers 0.2, 0.45, 1, 5, 10 and 30 micron ratings in lengths of 10″, 20″, 30″ and 40″, with 2–3″ diameters. DOE (double open end) cartridges seal at both ends and are compressed in the housing. SOE (single open end) cartridges have one closed end and an O-ring fitting that gives a more positive seal, which is preferred for critical fine filtration.
Use it for
- Fine and final filtration at 0.2–1 micron
- Pharmaceutical, beverage and electronics high-purity water
- Polishing after depth cartridges or bag filters
- Applications where low pressure drop at a fine rating is important
How to choose
- Choose the micron rating from the particle or organism size to be retained
- Choose DOE or SOE to match the housing seat; SOE suits critical duties
- Match length (10″–40″) and diameter (2–3″) to the housing
- Protect fine pleated cartridges with a coarser pre-filter to extend life
- Confirm chemical and temperature compatibility of polypropylene media with the liquid
Frequently asked questions
What is the difference between DOE and SOE pleated cartridges?
DOE (double open end) cartridges are open at both ends and seal by compression inside the housing. SOE (single open end) cartridges have one closed end and an O-ring adapter at the other, which locks into the housing for a more positive seal. SOE is usually specified for critical fine filtration where bypass must be minimised.
Why use a pleated cartridge instead of a spun cartridge?
Pleated cartridges have much more surface area, so they run with lower pressure drop and higher flow at fine ratings. They are available down to 0.2 micron. Spun cartridges hold more dirt through their depth at coarser ratings and cost less. A common approach uses a spun cartridge as the pre-filter and a pleated cartridge as the final stage.
Which micron ratings does the NWPL pleated cartridge come in?
NWPL pleated cartridges are offered in 0.2, 0.45, 1, 5, 10 and 30 micron ratings, in 10″, 20″, 30″ and 40″ lengths and 2–3″ diameters, with polypropylene media and cage. The 0.2 and 0.45 micron grades are used for fine and sterile-grade duties; coarser grades suit general polishing.
