Products & Consumables
High-Performance Components for Critical Water Infrastructure.
Filter bags, housings, cartridges, and RO membranes — manufactured and technically supported by Navbharat Water for critical filtration applications.

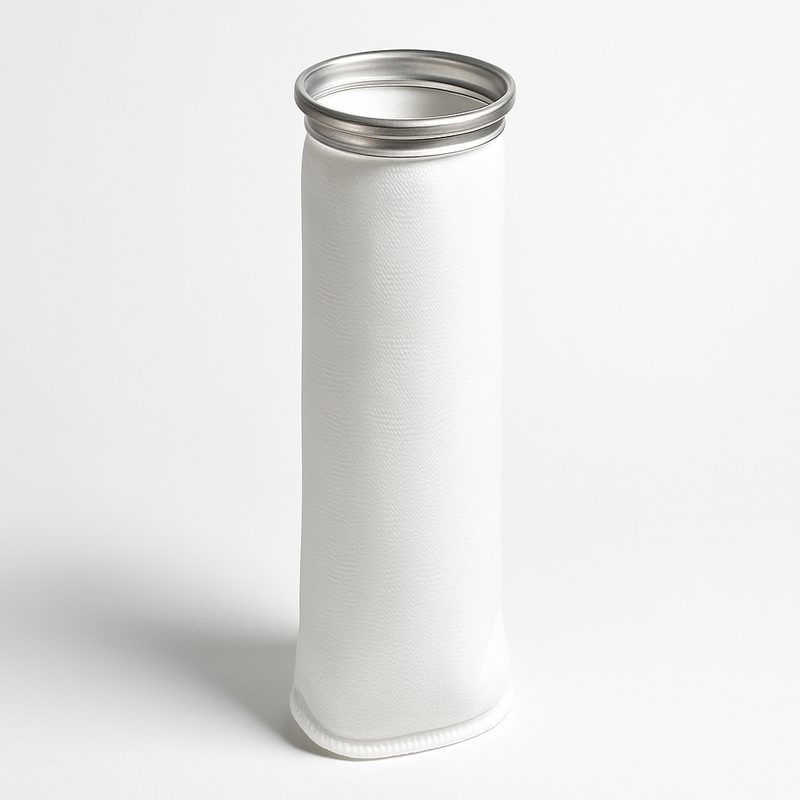

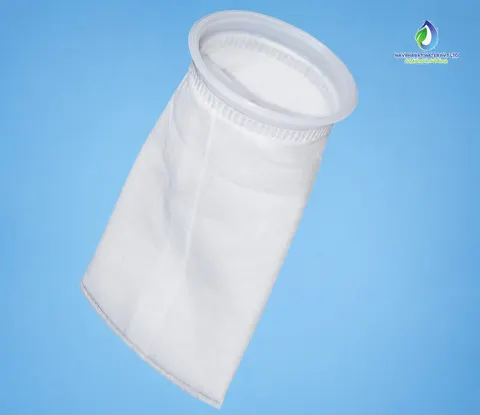

NWPL PP Filter Bag
1–300 micron · PP Polypropylene · 90–100 °C
Acid proof, alkali proof, corrosion resistant polypropylene filter bag for sanitary applications. High cost-performance ratio for standard industrial filtration.

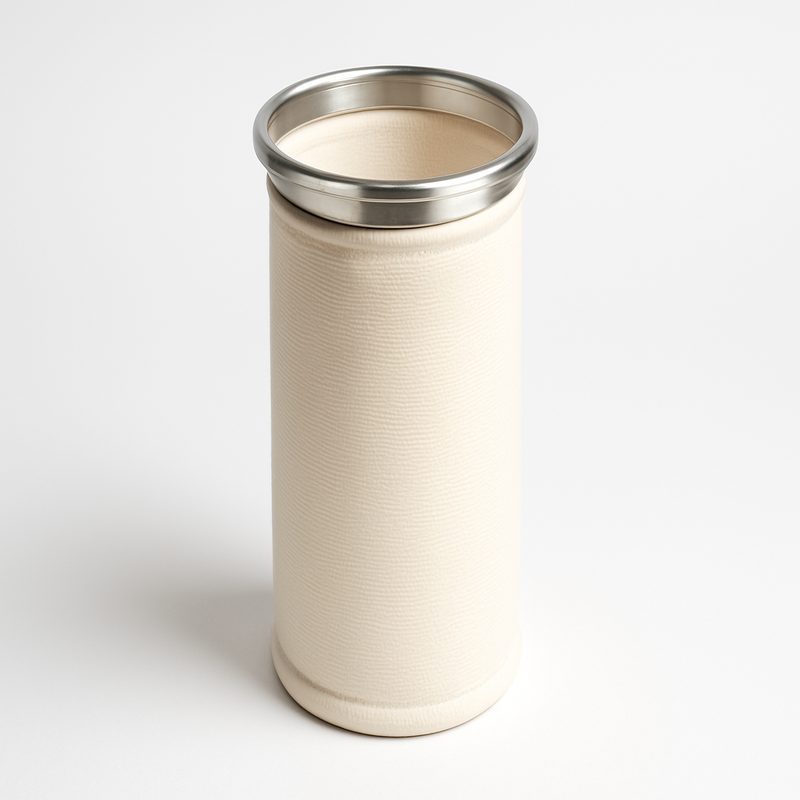

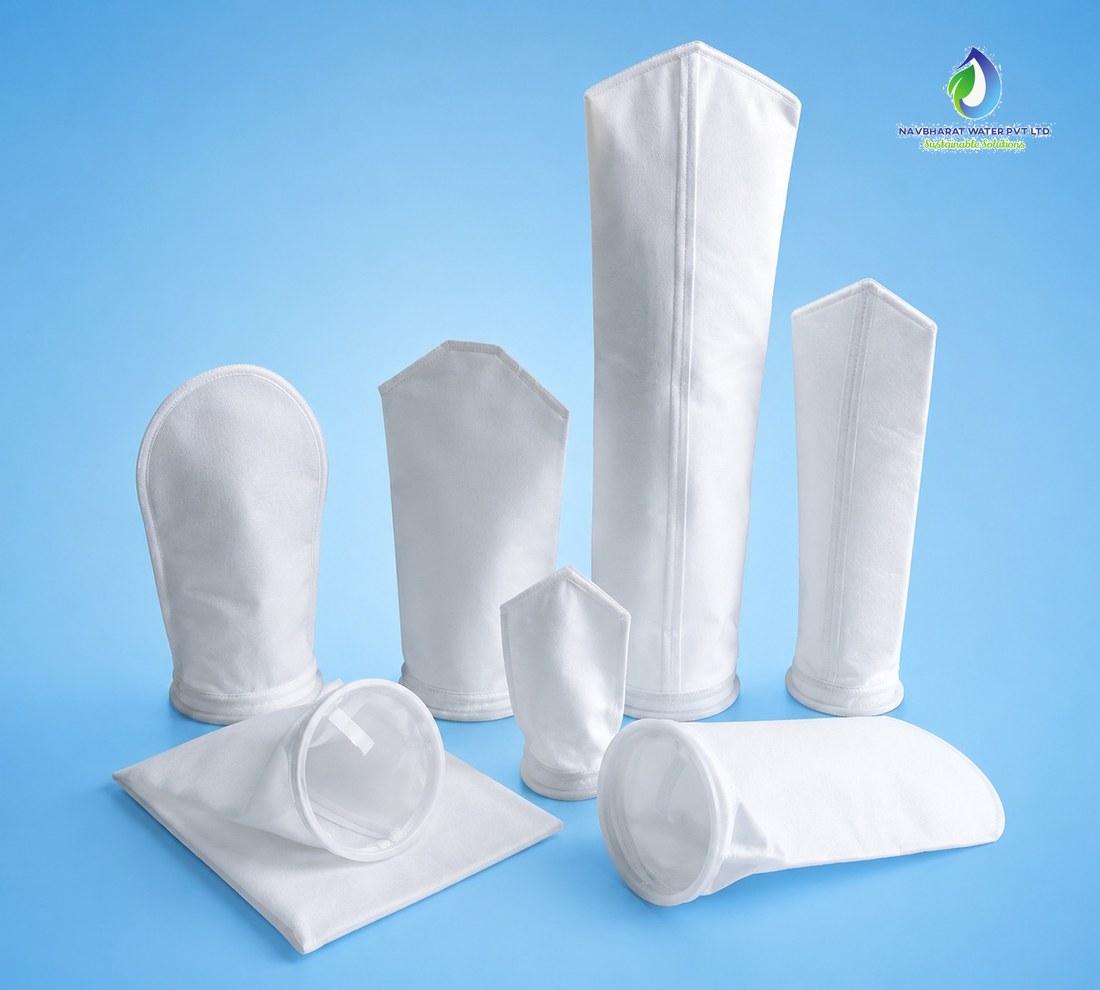

NWPL PE Filter Bag
1–300 micron · PE Polyester · 130–150 °C
Polyester filament fiber with excellent mechanical strength. Food grade application rated. Handles higher temperatures than PP — suitable for hot liquid filtration.

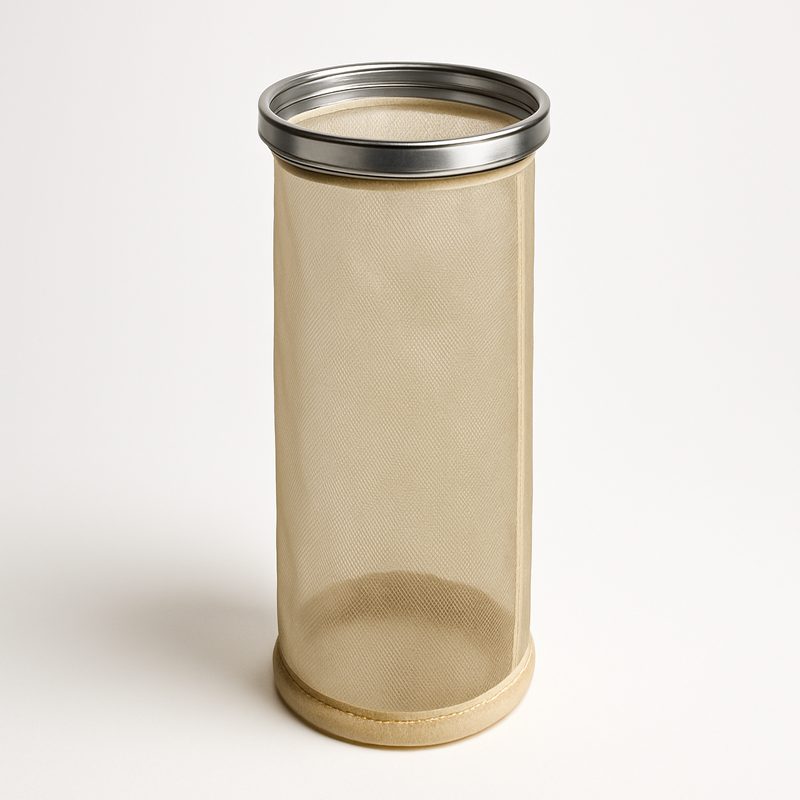

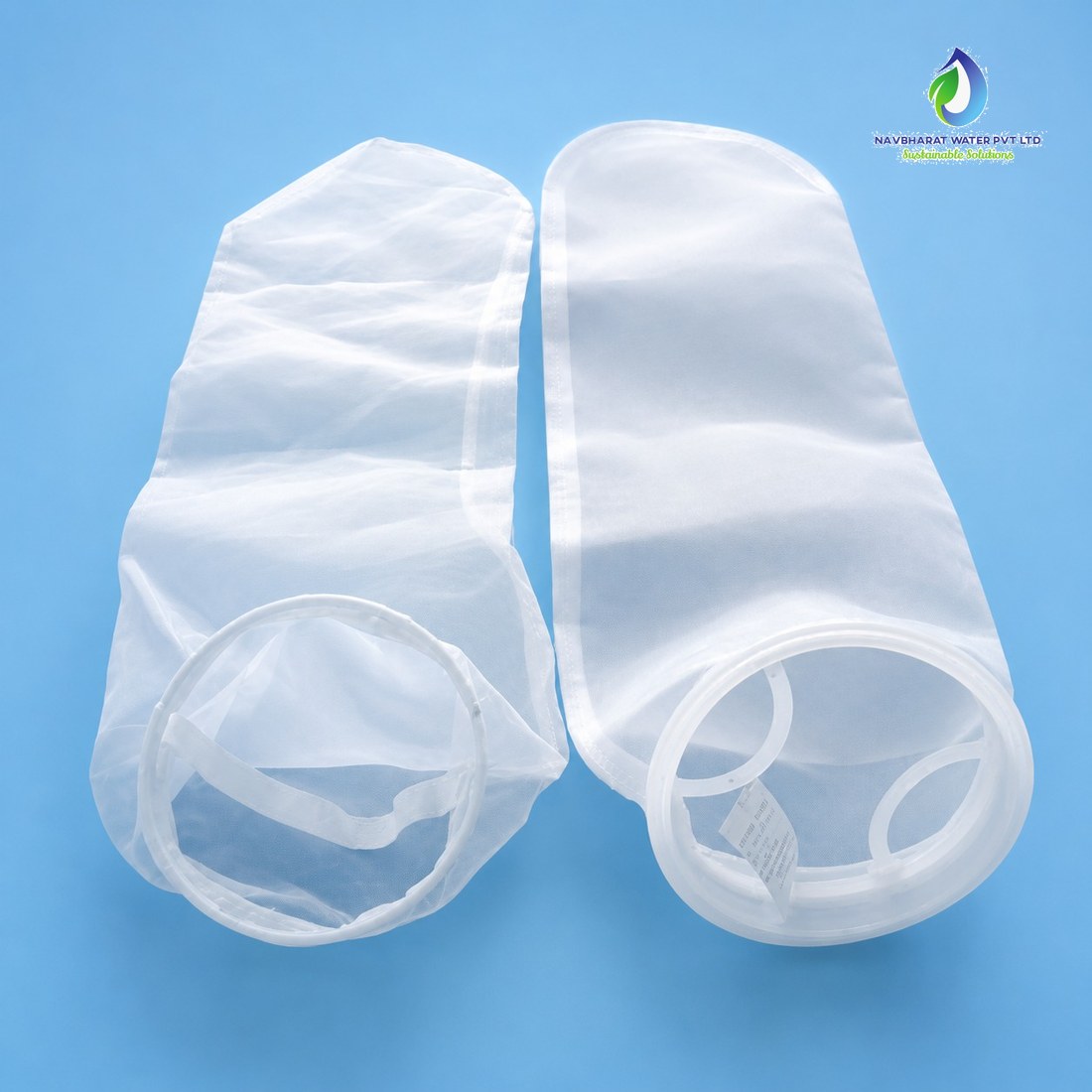

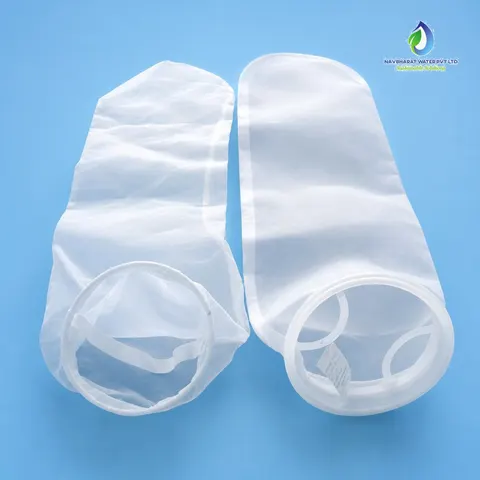

NWPL NMO Nylon Filter Bag
10–800 mesh · Nylon mono/multi-filament · Repeatable cleaning
Nylon monofilament and multifilament construction for absolute precision filtration. Good deformation resistance and wear resistance. Suitable for repeated chemical cleaning.

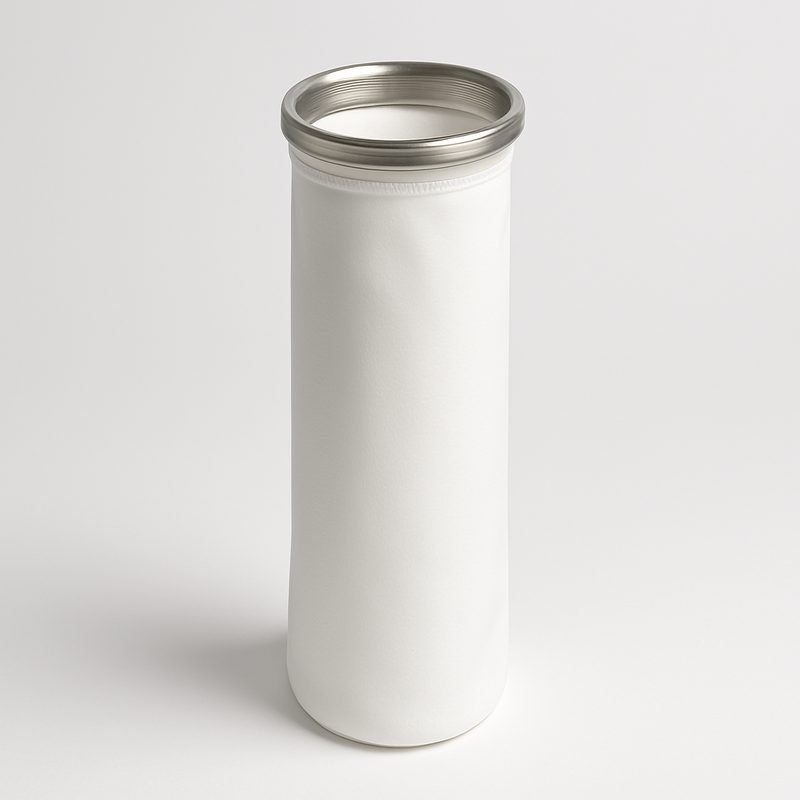

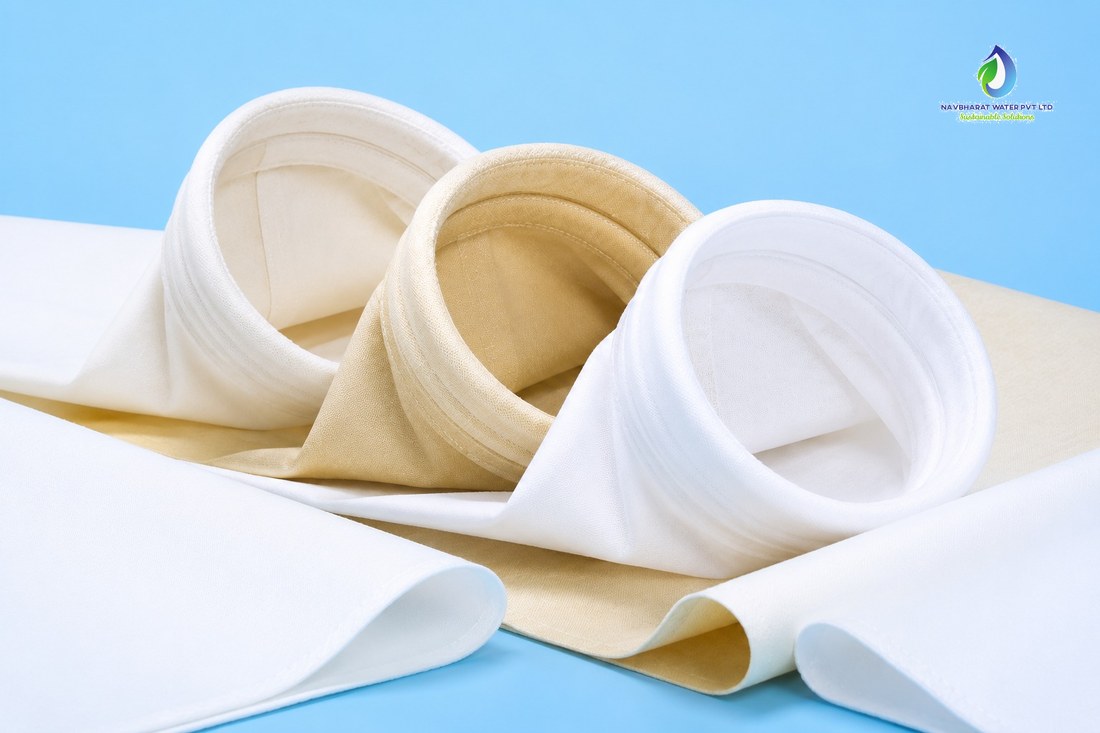

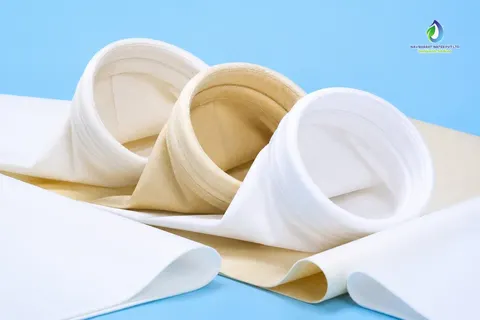

NWPL TXL Membrane Filter Bag
0.5 micron · PTFE microporous membrane · PP/PE/PTFE
PTFE microporous membrane covering on smooth, clean surface. High filtration efficiency with absolute precision at 0.5 micron. Available in PP, PE, and PTFE membrane grades.

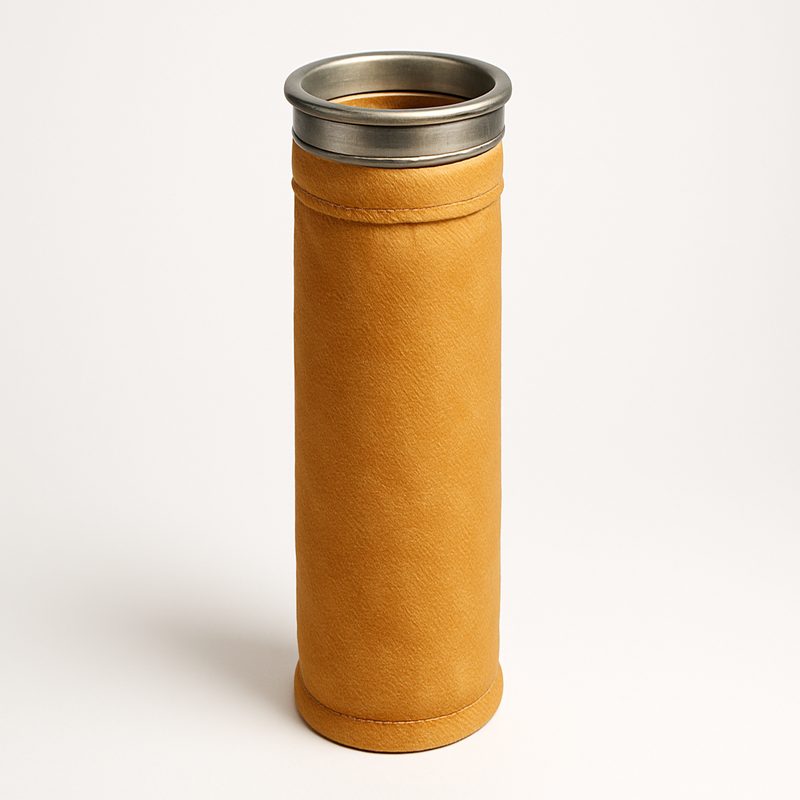

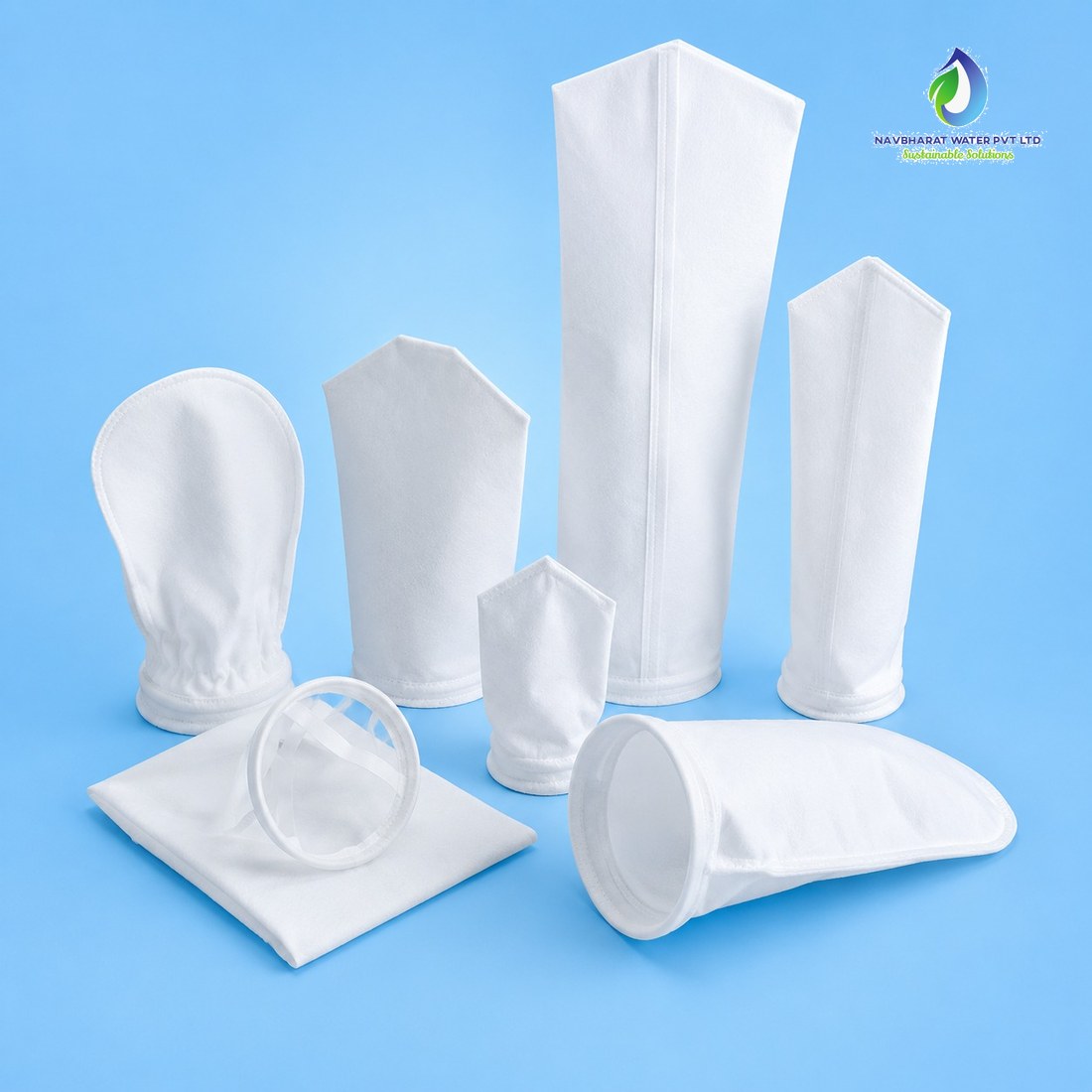

NWPL TPF High Temperature Filter Bag
196–260 °C · Aqua regia resistant · Anti-oxidation
Engineered for extreme working conditions. Resistant to strong acids, alkali, and aqua regia. Excellent anti-oxidation and anti-corrosion properties for high-temperature industrial filtration.

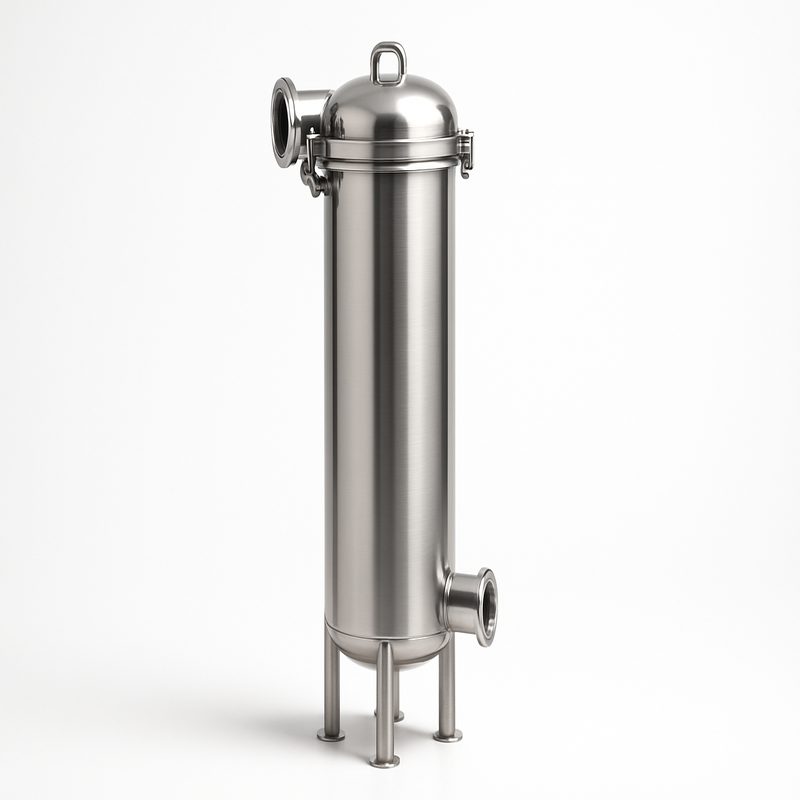

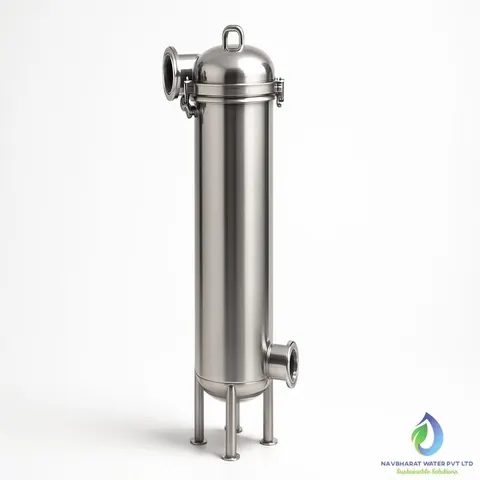

NWPL TDF Top Inlet Filter Housing
Top inlet · Trumpet-shaped space · Fast bag change
TDF top inlet design with precise casting mould construction. Trumpet-shaped inlet for automatic flow distribution and reduced pressure. No junk ring design — bag changes without secondary pollution.

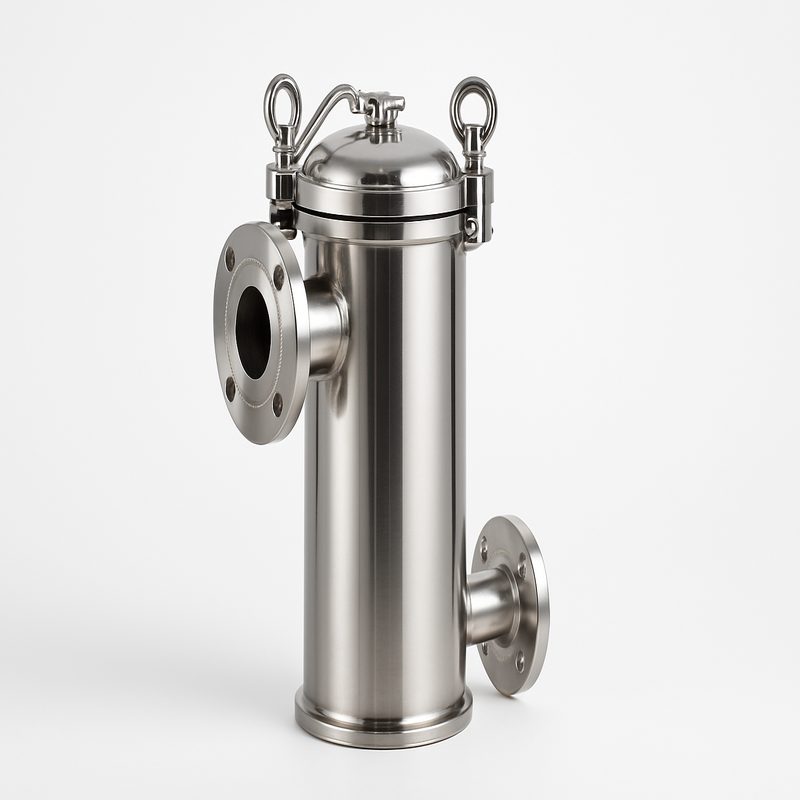

NWPL TFF 01/02 Side Inlet Filter Housing
Side in bottom out · Symmetrical bolt locking · Polished wall
TFF 01/02 side inlet, bottom outlet filtration. Good leak-proof symmetrical bolted locking with plastic ring seal. Polished wall prevents contamination precipitation. Clamp ring design for flexible bag gland.

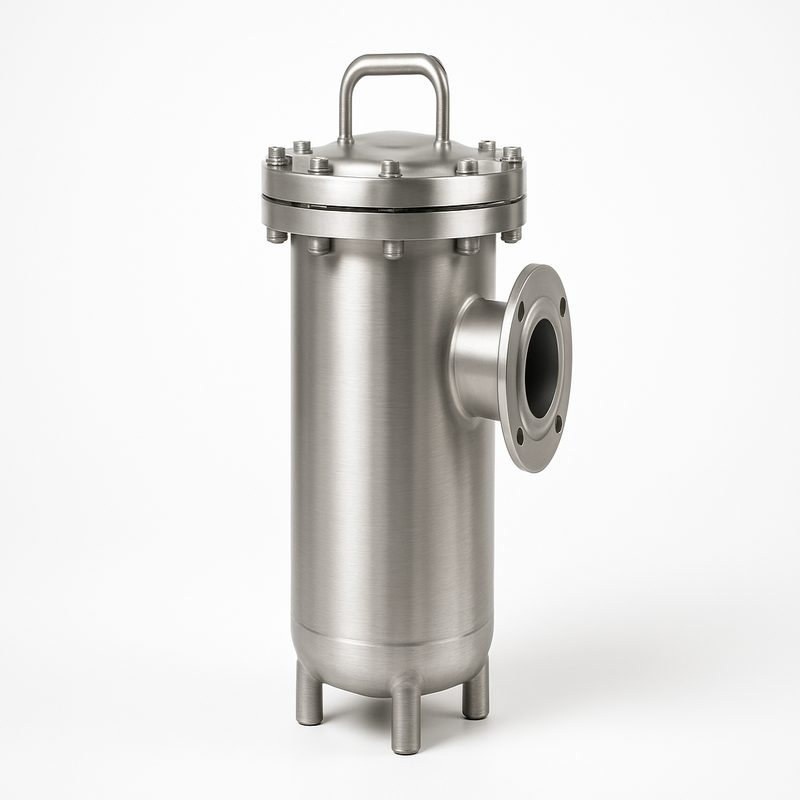

NWPL TFF 03/04 Side Inlet Filter Housing
Side in bottom out · Bolted locking · Compact design
TFF 03/04 compact side-in, bottom-out filtration housing. Simple and convenient operation with bolted locking and movable adjustable supporting feet for flexible installation.

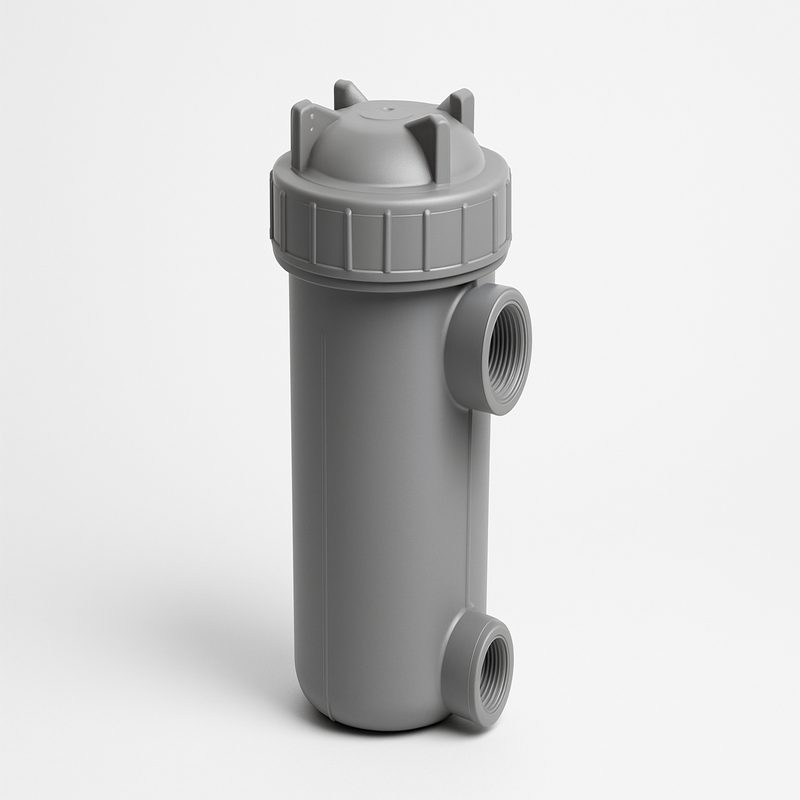

NWPL TPF 05/02 PP Filter Housing
PP casting · No metal parts · Acid/alkali resistant
Polypropylene casting housing with no metal parts inside the filter. Outstanding chemical resistance to acids and alkalis. Recyclable, environmentally friendly. Normal temperature operation.

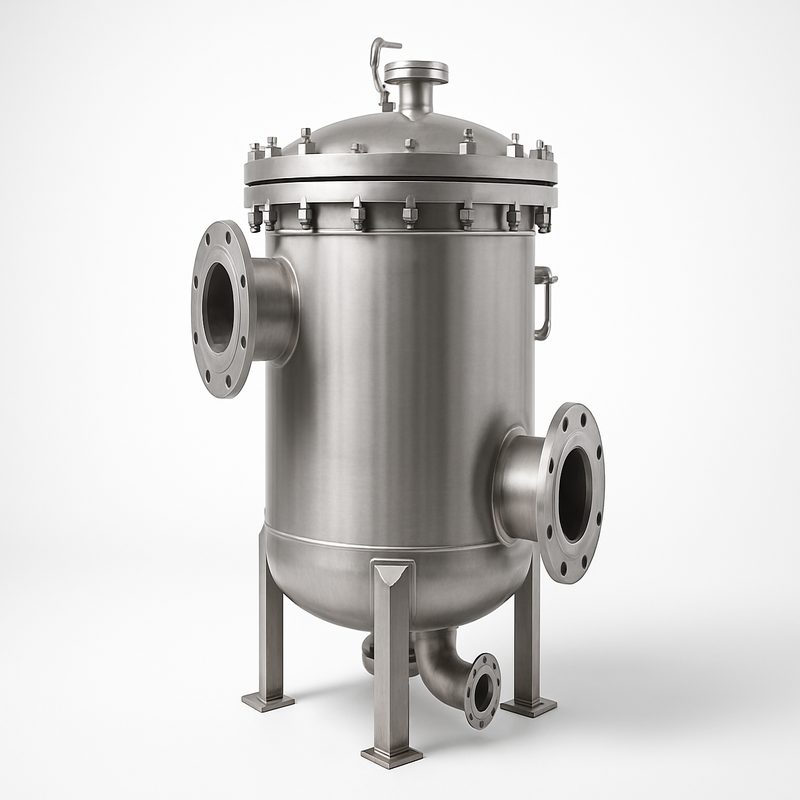

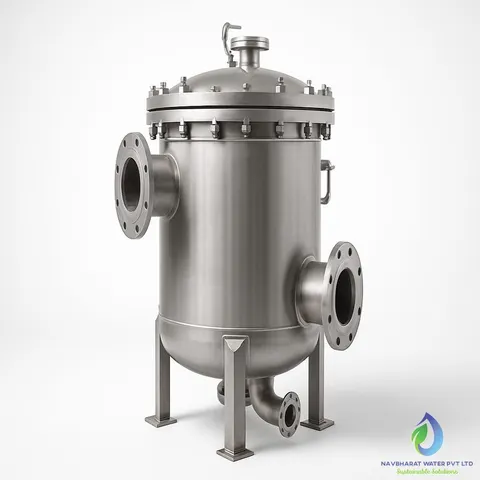

NWPL TMF Multi-Bag Filter Housing
3–24 bag capacity · High flow · Bolted seal
TMF multi-bag housing for large-flow industrial applications requiring high efficiency. Accepts 3–24 filter bags. Unscrewing design with bolted seal for easy operation and maintenance.

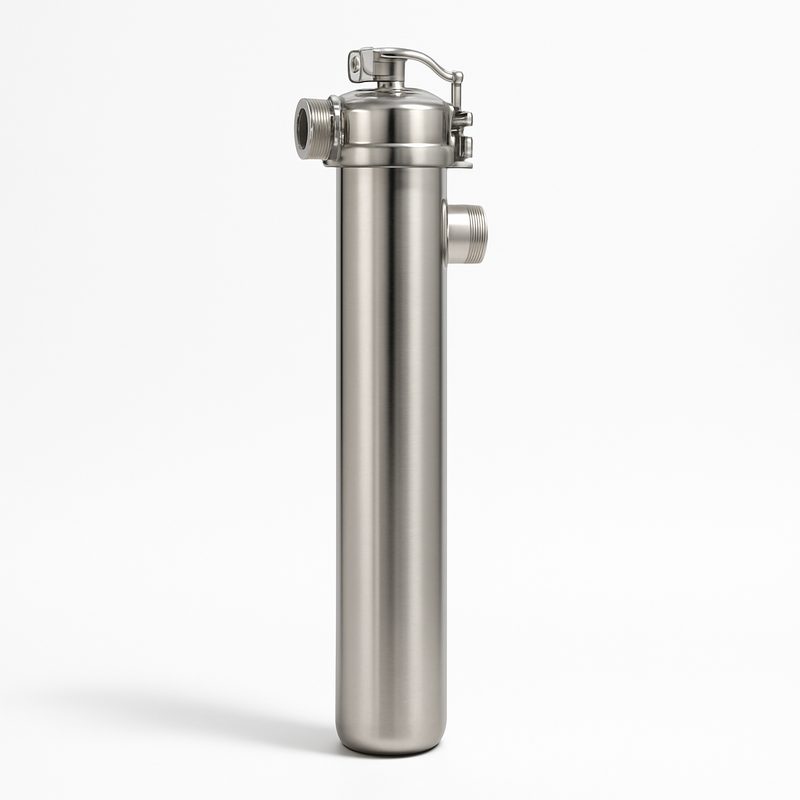

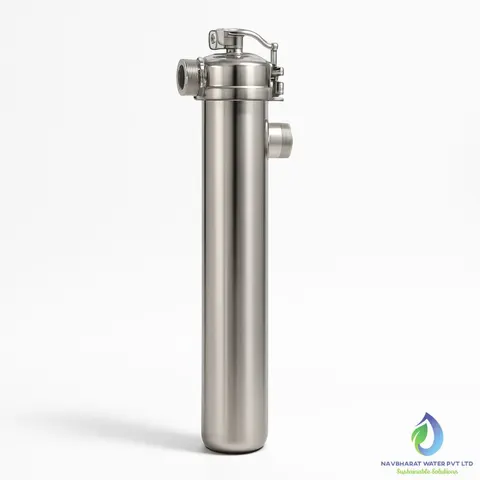

NWPL TXF Cartridge Filter Housing
Cartridge type · Melt-blown/Wire-wound/Folding elements
TXF cartridge filter housing compatible with melt-blown, wire-wound, and folding cartridge elements. Suitable for beverage, pharmaceutical, chemical, and other industries requiring precise liquid filtration.

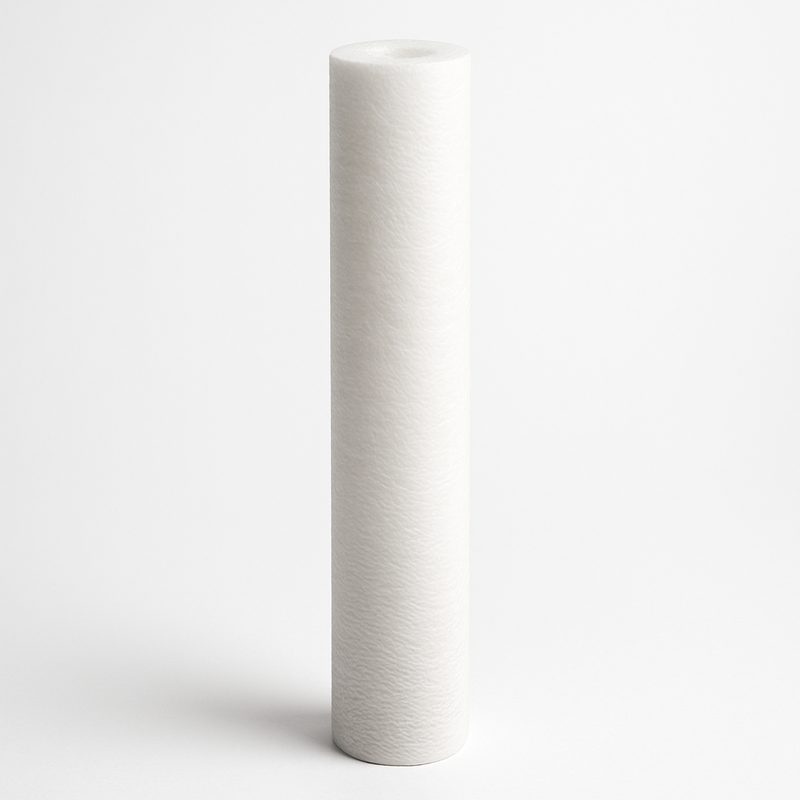

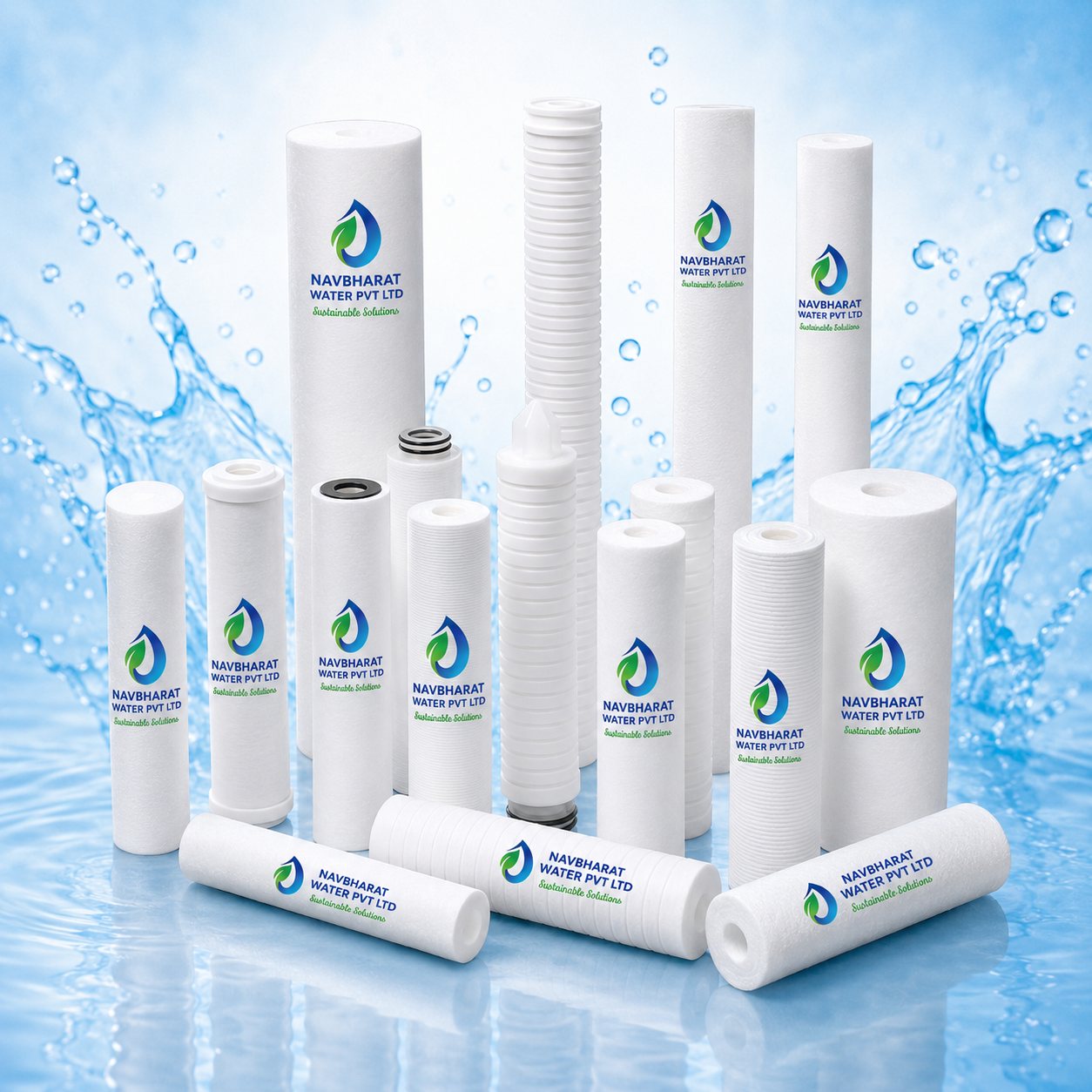

NWPL PP Spun Filter Cartridge
1–100 micron · 10″/20″/30″/40″ · PP Melt-Blown
PP spun (melt-blown) sediment cartridge with gradient deep filtration — outer sparse, inner dense structure. The workhorse pre-filter for RO systems, domestic water, and process water across industries.

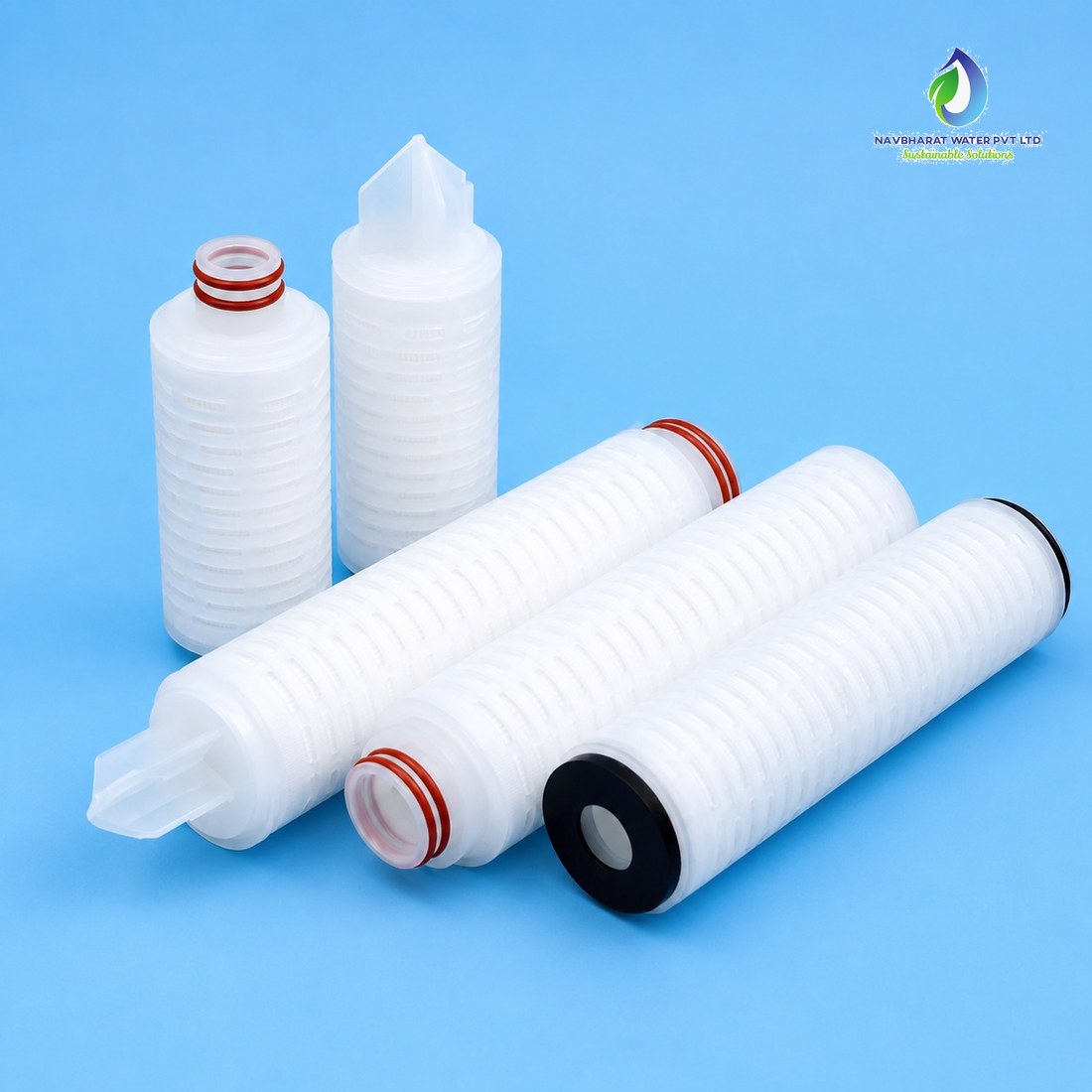

NWPL Pleated Filter Cartridge
0.2–30 micron · DOE & SOE · 10″/20″/30″/40″
Pleated polypropylene cartridge in DOE and SOE end configurations. Large filtration area with precision from 0.2 micron — for fine and sterile-grade filtration duties.

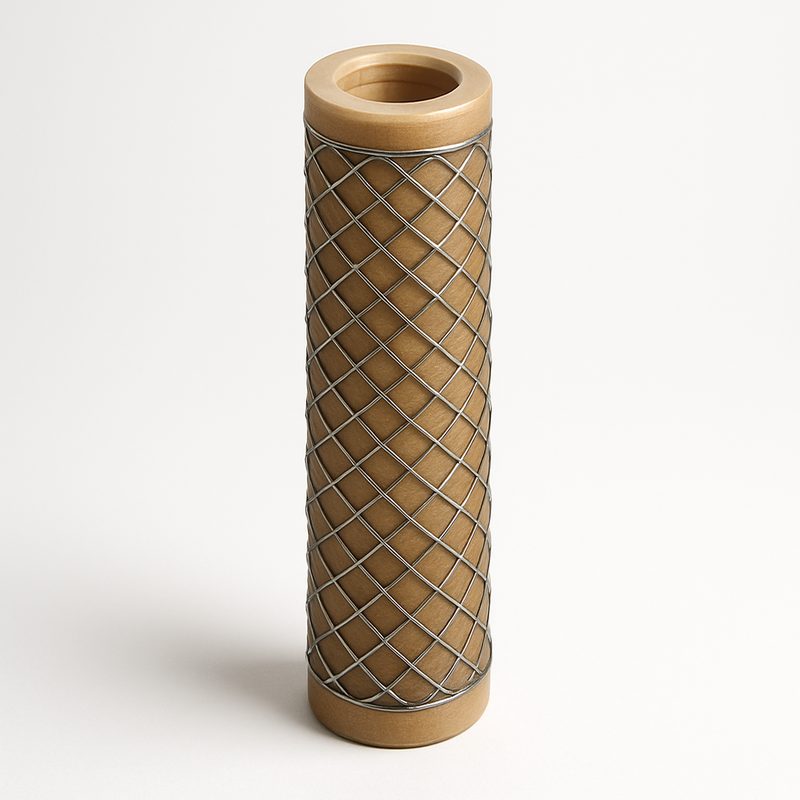

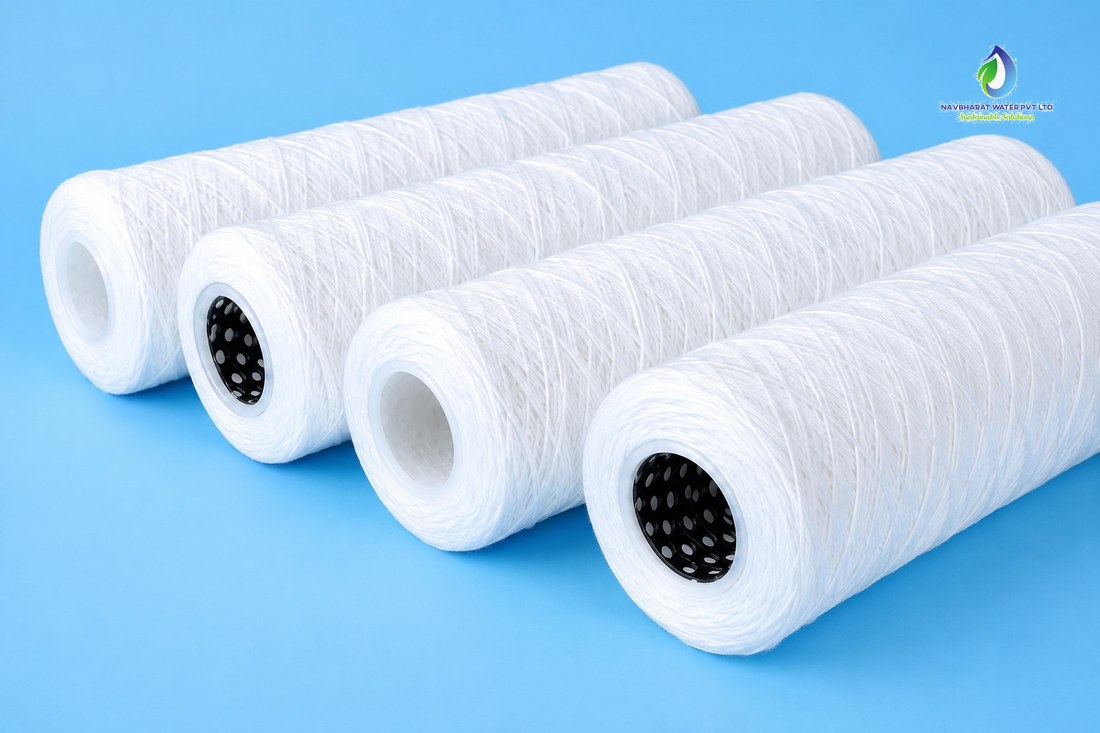

NWPL Wire Wound Filter Cartridge
Honeycomb structure · Deep filtration · RO pre-filtration
Textile fiber tightly wound on porous framework in honeycomb structure for deep filtration. Used in RO pre-filtration, sterile water, ultra-pure water, mechanical/cutting/heavy oil filtration, and industrial water.

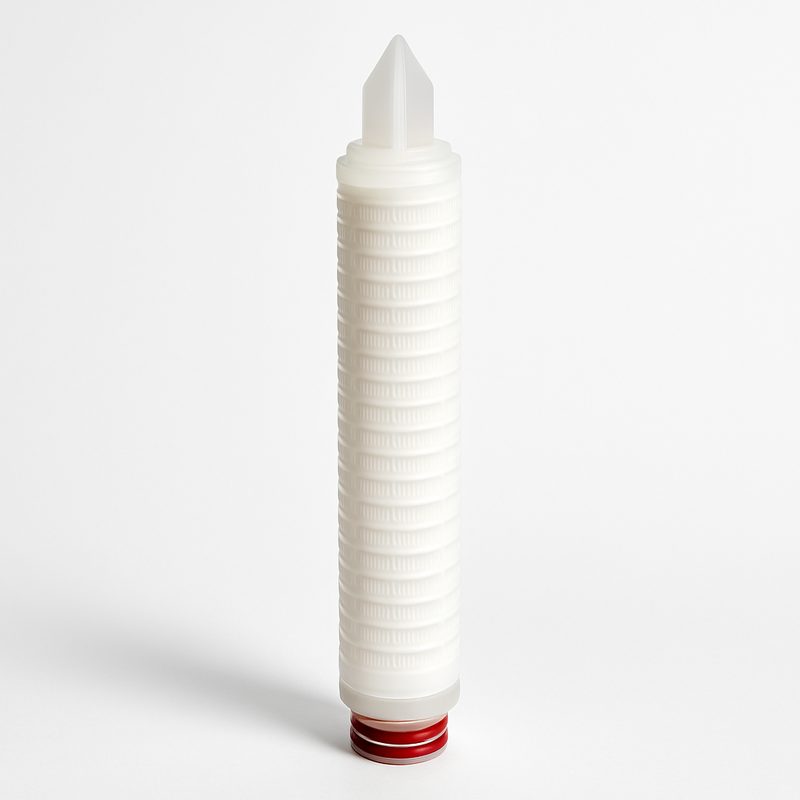

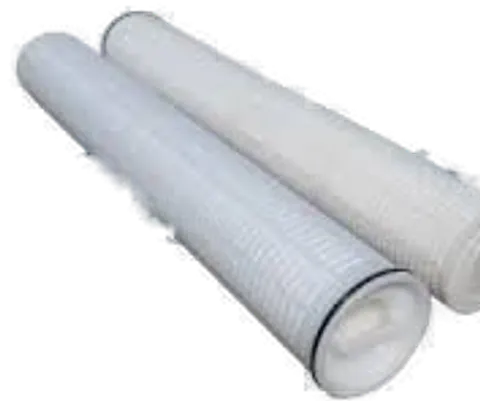

NWPL Folding Filter Cartridge
0.1–30 micron · Folded PP fiber membrane · Large filtration area
Deep layer filter made of folded ultra-fine polypropylene fiber membrane. Large filtration area and high throughput. Used in electronics high-purity water, pharmaceutical infusion filtration, and chemical organic solvents.

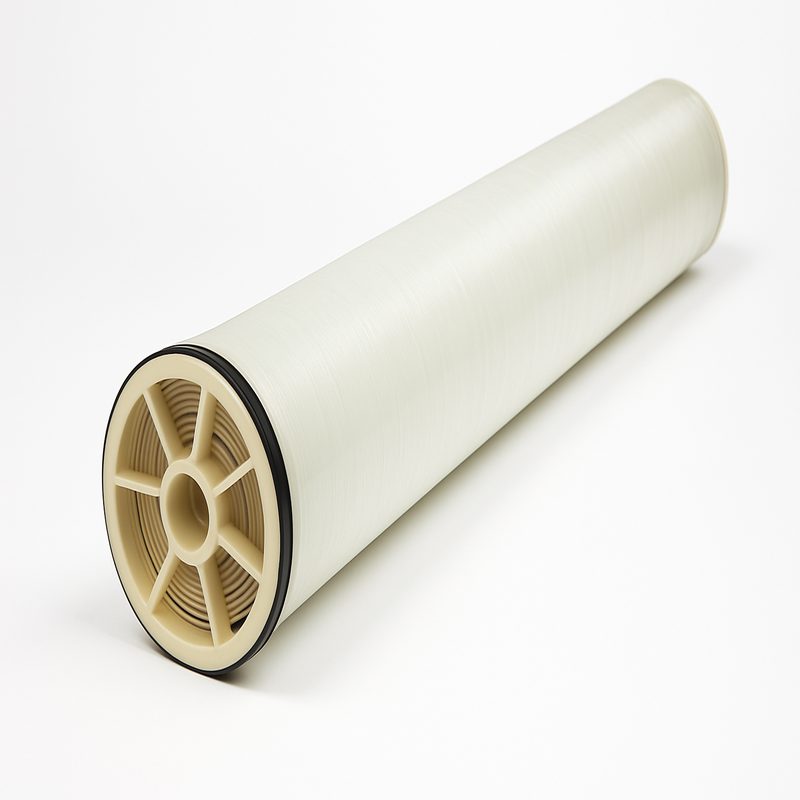

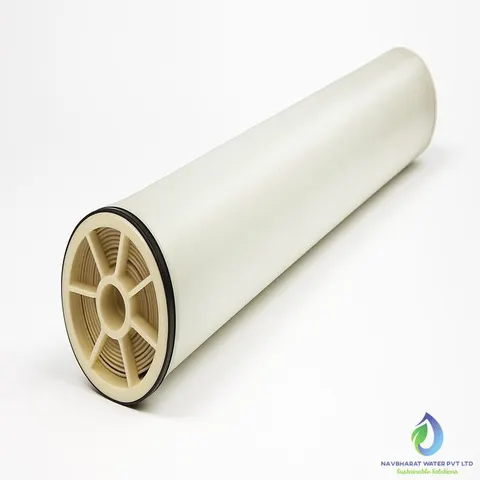

NWPL BW-4040/8040 RO Membrane (Brackish Water)
99.5–99.8% rejection · 2000 ppm · 45 °C max · 600 psi · pH 3–10
Polyamide composite spiral-wound RO element for brackish water up to 2000 ppm TDS. Models: BW-4040-HR (99.7%), BW-4040-HF (99.5%), BW-4040-FR (99.8%). Max operating pressure 600 psi (4.14 MPa). For industrial and commercial RO systems.

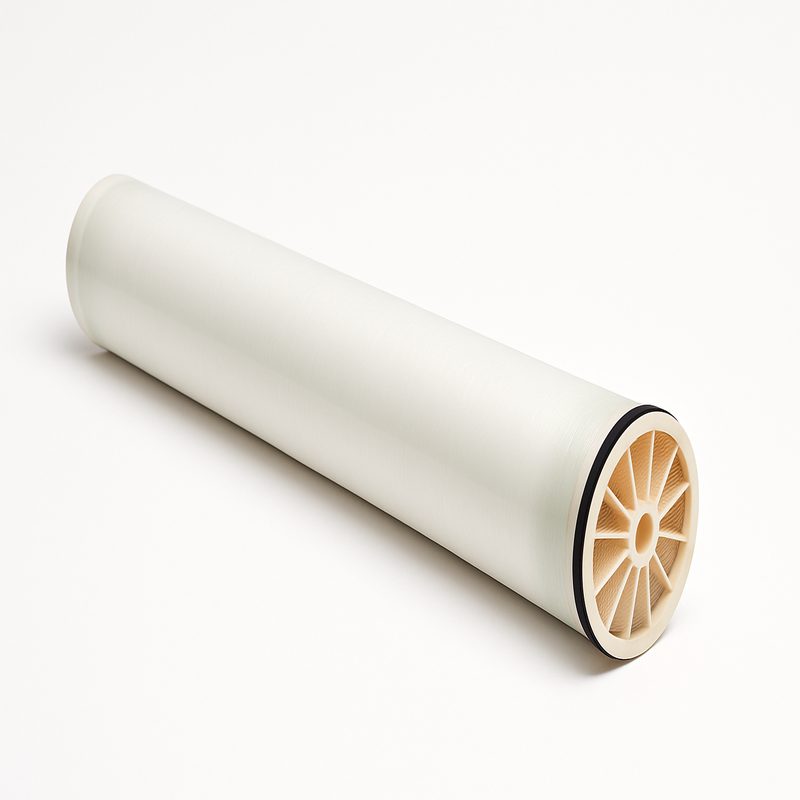

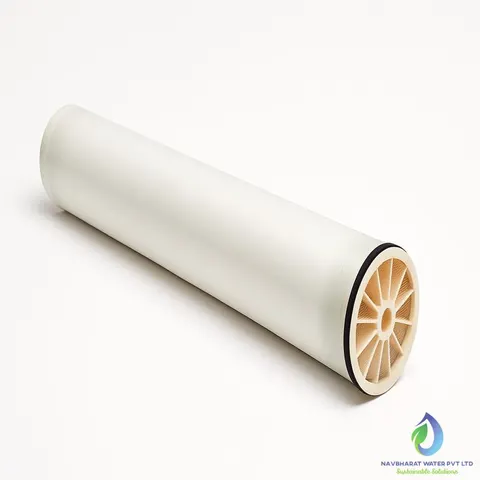

NWPL TW-4040/8040 RO Membrane (Tap Water)
99.0–99.5% rejection · 1500 ppm · 45 °C max · 600 psi · pH 3–10
Polyamide composite RO membrane optimised for 1500 ppm tap water. Models: TW-4040-HR (99.3%), TW-4040-HF (99.0%), TW-4040-FR (99.5%). Operating pH 3–10. For drinking water purification, boiler recharge, and process water applications.
NWPL SW-4040/8040 RO Membrane (Sea Water)
99.7–99.85% rejection · Seawater · 45 °C max · 1200 psi · pH 3–10
High-pressure polyamide composite RO element for seawater desalination and high-TDS feeds. Models: SW-4040-HR/HF/FR (1600–1900 GPD) and SW-8040-HR/HF/FR (6000–11000 GPD). Salt rejection up to 99.85%.
EuroTec ETUF-9060R UF Membrane Module
60 m² · PVDF · 0.025 µm · Ø344×2340mm · 2.5 bar · pH 1–12 · 6-log bacteria
Outside-in PVDF hollow-fibre UF module with 60 m² membrane area. NSF, CE, and ISO 9001 certified. Handles cross-flow and dead-end operation. Typical flux 60–120 LMH. Primary module for RO pre-treatment, municipal water, and industrial wastewater recycling.
EuroTec ETUF-9040R UF Membrane Module
40 m² · PVDF · 0.025 µm · Ø344×1600mm · 2.5 bar · pH 1–12 · 6-log bacteria
Compact 40 m² PVDF hollow-fibre UF module for smaller-footprint installations. Same certified membrane technology as the 9060R in a shorter 1600mm housing. Suited for decentralised water treatment, hotel water polishing, and RO pre-treatment on mid-size systems.
EuroTec ETUF-9060F UF Membrane Module
60 m² · PVDF · 0.025 µm · Ø258×2130mm · 2.5 bar · pH 1–12 · 6-log bacteria
Space-optimised 60 m² UF module in a narrower Ø258mm housing — 86mm smaller diameter than the 9060R. Ideal where rack width is constrained. Outside-in flow, identical membrane performance and certifications. Popular for compact containerised skid systems.
EuroTec ETUF-9076D UF Membrane Module
76 m² · PVDF · 0.025 µm · Ø275×2360mm · 6.0 bar · pH 1–12 · 6-log bacteria
High-pressure 76 m² UF module rated to 6.0 bar feed pressure — twice the pressure tolerance of standard models. DN50 flanged connections for large-bore piping. Suited for high-turbidity surface water, seawater desalination pre-treatment, and high-flow industrial ZLD pre-treatment trains.
Need a P&ID, CAD file, or technical datasheet?
Technical documentation is available on request for consulting engineers and project procurement teams.
