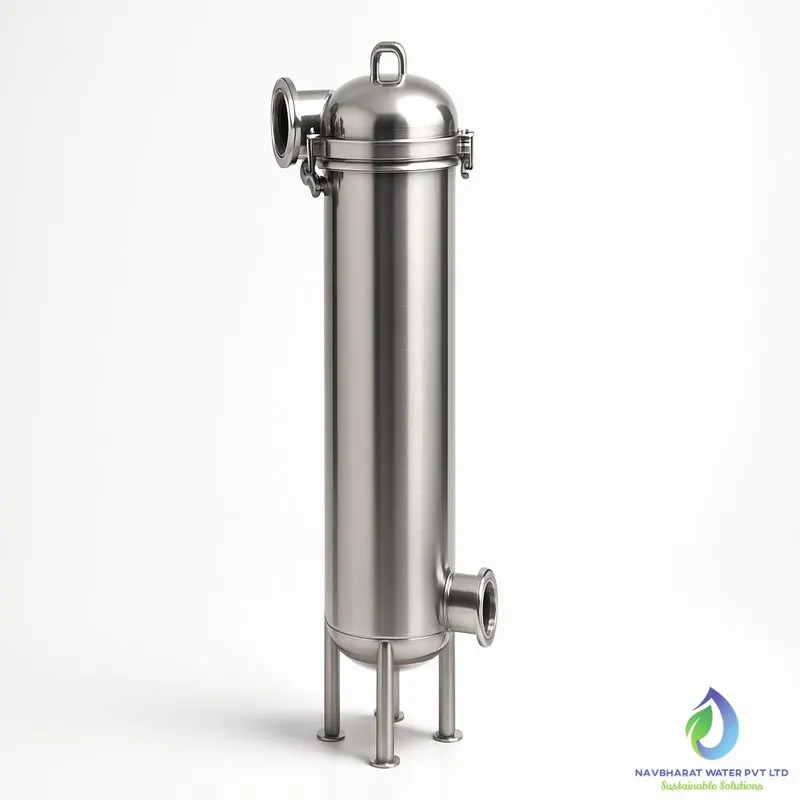

NWPL TDF Top Inlet Filter Housing
Top inlet · Trumpet-shaped space · Fast bag change
TDF top inlet design with precise casting mould construction. Trumpet-shaped inlet for automatic flow distribution and reduced pressure. No junk ring design — bag changes without secondary pollution.
Specifications
| Type | Top inlet bag filter housing |
|---|---|
| Construction | Precise casting mould, symmetrical bolt design with plastic ring seal |
| Features | Fast opening, no junk ring, adjustable support feet |
| Brand | Navbharat Water (NWPL) |
| Country of Origin | Made in India |
| Certification | ISO 9001:2015 |
Where it's used
- Water & Wastewater Treatment
- Pharmacy
- Food & Beverages
- Paints, Coatings & Glue
- Petrochemical Engineering
- Electronic Technology
- Metal Processing
- Automobile Making
Related solutions
What it is and when to use it
The NWPL TDF is a single-bag filter housing with a top inlet. Liquid enters above the bag through a trumpet-shaped space that spreads flow evenly. Choose it when you want even flow distribution, low pressure loss and quick, clean bag changes without spilling collected solids back downstream.
With a top-inlet design, liquid fills the bag from above, so the entire bag surface is used and solids stay inside the bag when it is lifted out. The trumpet-shaped inlet space distributes flow automatically, reducing pressure and keeping filtration steady.
The body is made with a precise casting mould. A symmetrical bolt design with a plastic ring seal prevents deformation and spills, and the fast-opening lid has no junk ring, so the bag can be changed without secondary pollution. Adjustable support feet allow the housing to be fitted to the available space. It accepts standard filter bags in PP, PE, nylon, membrane or high-temperature grades.
Use it for
- Single-bag duties where even flow over the whole bag matters
- Processes where solids must not fall back into the outlet during a bag change
- Frequent bag changes that need a fast-opening lid
- Final or protective filtration ahead of cartridges, membranes or filling lines
How to choose
- Size the housing from design flow and the pressure drop you can accept
- Select the bag size and micron rating first, then confirm housing compatibility
- Specify inlet/outlet connection type and size to suit your pipework
- Check operating pressure and temperature, including seal material for hot or aggressive liquids
- Allow headroom above the housing to lift the lid and remove the bag
Frequently asked questions
Why choose a top-inlet bag filter housing?
A top-inlet housing feeds liquid into the bag from above, so the whole bag area is used and trapped solids stay inside the bag when it is removed. The TDF adds a trumpet-shaped inlet space that distributes flow and reduces pressure, which keeps filtration stable and makes bag changes cleaner.
What does "no junk ring" mean on the TDF housing?
In some housings, a separate ring holds the bag in place and must be removed during each change. The TDF lid design does not need one, so the housing opens quickly and the bag comes out without disturbing collected solids. That reduces the risk of secondary contamination during maintenance.
Which filter bags can I use in the NWPL TDF housing?
The TDF housing works with NWPL filter bags in PP, PE, nylon mesh, TXL membrane and TPF high-temperature grades, so the same housing can move between duties by changing the bag. Confirm the bag size (Size 1 or Size 2) when ordering so the housing and bag match.
Technically reviewed by Prashant Dwivedi, Co-Founder & Director ·
