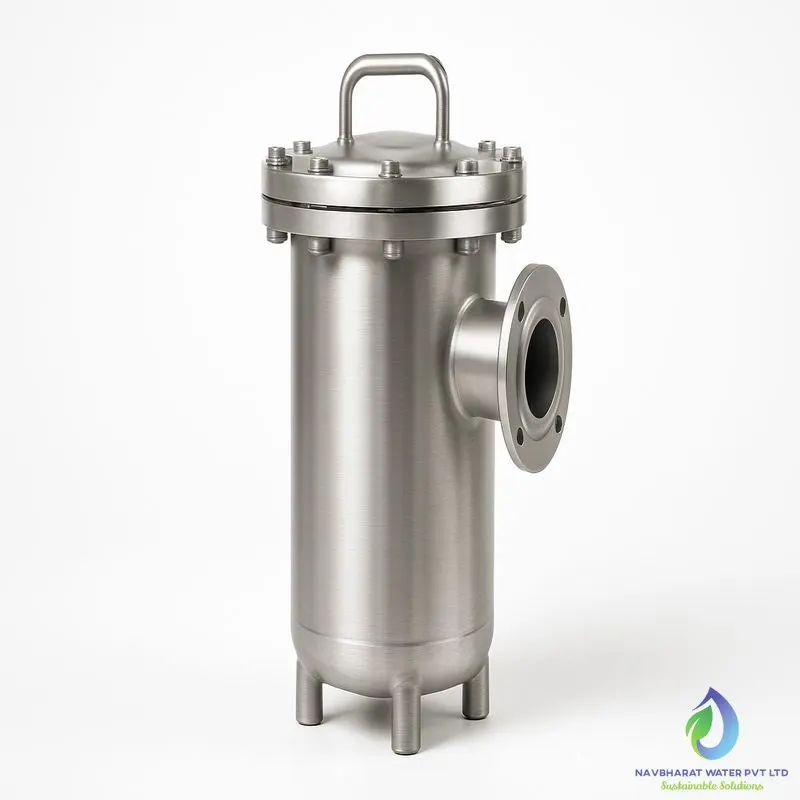

NWPL TFF 03/04 Side Inlet Filter Housing
Side in bottom out · Bolted locking · Compact design
TFF 03/04 compact side-in, bottom-out filtration housing. Simple and convenient operation with bolted locking and movable adjustable supporting feet for flexible installation.
Specifications
| Type | Compact side-in, bottom-out bag filter housing |
|---|---|
| Features | Small volume, flexible installation, economical & practical |
| Brand | Navbharat Water (NWPL) |
| Country of Origin | Made in India |
| Certification | ISO 9001:2015 |
Where it's used
- Water & Wastewater Treatment
- Pharmacy
- Food & Beverages
- Paints, Coatings & Glue
- Petrochemical Engineering
- Electronic Technology
- Metal Processing
- Automobile Making
Related solutions
What it is and when to use it
The NWPL TFF 03/04 is a compact side-inlet, bottom-outlet bag filter housing with a small volume. It suits lower flows, skid-mounted equipment and installations with limited floor space, offering bolted locking, simple operation and movable adjustable feet at an economical price point.
Where a full-size housing would be oversized, the TFF 03/04 keeps hold-up volume low, which means less product is lost when the housing is drained for a bag change. That makes it practical for dosing lines, small process streams, batch transfers and point-of-use protection.
Its bolted locking gives a reliable seal without complex closures, and the adjustable supporting feet allow flexible installation on skids or in plant rooms. The same side-in, bottom-out flow path as the larger TFF models makes it easy to fit into existing pipe routes. For higher flows or heavier solids loads, step up to the TFF 01/02, TDF or multi-bag TMF.
Use it for
- Low-flow lines, chemical dosing and small process streams
- Skid-mounted systems and plant rooms with limited space
- Batch transfers where low hold-up volume reduces product loss
- Point-of-use protection for pumps, nozzles and instruments
How to choose
- Confirm design flow is suited to a compact housing
- Check which bag sizes the housing accepts before ordering bags
- Specify connection size and type to match the line
- Review operating pressure, temperature and seal compatibility
- Move to a larger housing if bag changes become too frequent
Frequently asked questions
Where is a compact bag filter housing like the TFF 03/04 used?
Compact housings are used where flows are modest and space is tight: chemical dosing lines, small process streams, skids and point-of-use protection. The TFF 03/04 offers the same side-inlet, bottom-outlet flow path as larger models, with a small volume that reduces product hold-up and makes it easy to install.
Does the smaller volume of the TFF 03/04 help with bag changes?
Yes. A smaller housing holds less liquid, so there is less to drain before opening it and less product is lost at each change. This matters when the liquid is expensive, hazardous or batch-produced. The bolted lid keeps opening and closing simple for operators.
When should I choose a larger housing instead of the TFF 03/04?
Choose a larger housing when flow increases, when solids loads cause frequent bag changes, or when pressure drop climbs too fast. The TFF 01/02 or TDF single-bag housings take larger bags, and the TMF multi-bag housing accepts 3–24 bags for high-flow industrial duties.
