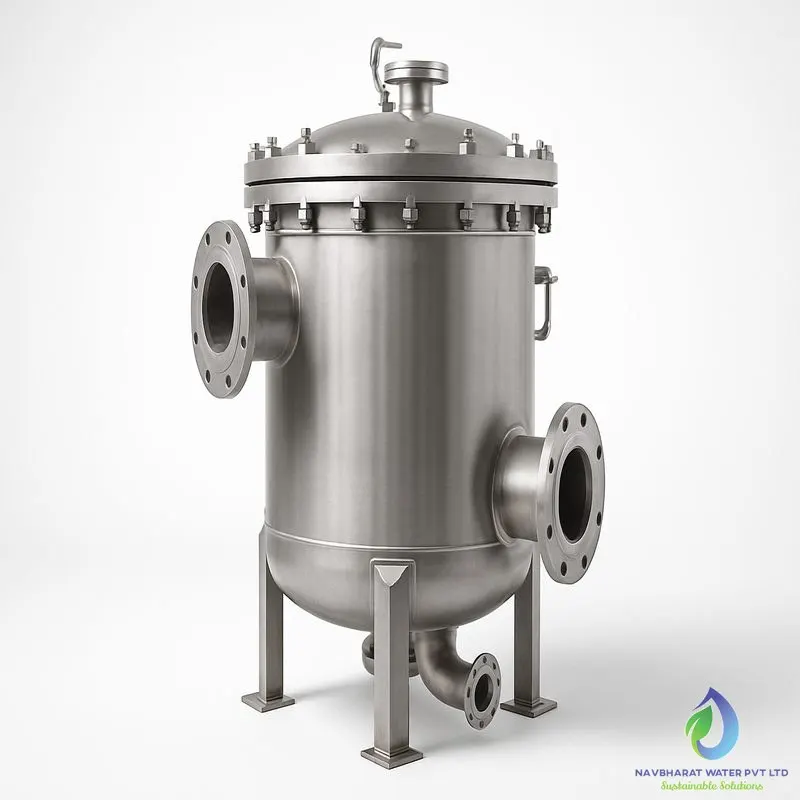

NWPL TMF Multi-Bag Filter Housing
3–24 bag capacity · High flow · Bolted seal
TMF multi-bag housing for large-flow industrial applications requiring high efficiency. Accepts 3–24 filter bags. Unscrewing design with bolted seal for easy operation and maintenance.
Specifications
| Type | Multi-bag large flow filter housing |
|---|---|
| Bag Capacity | 3–24 bags |
| Features | Unscrewing design, bolted seal, high-flow industrial duty |
| Brand | Navbharat Water (NWPL) |
| Country of Origin | Made in India |
| Certification | ISO 9001:2015 |
Where it's used
- Water & Wastewater Treatment
- Pharmacy
- Food & Beverages
- Paints, Coatings & Glue
- Petrochemical Engineering
- Electronic Technology
- Metal Processing
- Automobile Making
Related solutions
What it is and when to use it
The NWPL TMF is a multi-bag filter housing that holds 3 to 24 filter bags in one vessel. Use it when flow is too high for a single-bag housing, when you want longer run times between changes, or when you need industrial-scale bag filtration with a single set of connections.
Multiple bags run in parallel inside one pressure vessel, so total filter area scales with bag count. More area means lower flow per bag, which reduces pressure drop, extends change-out intervals and allows finer micron ratings at high flow.
The TMF uses an unscrewing design with a bolted seal for easy operation and maintenance. For processes that cannot stop, two housings can be installed in a duplex arrangement with changeover valves, so one unit stays online while bags are changed in the other. The housing accepts the full NWPL bag range, from PP and PE felt to membrane and high-temperature grades.
Use it for
- High-flow industrial lines beyond single-bag capacity
- Streams with heavy solids loads that would clog a single bag quickly
- Cooling water, process water and wastewater recycling duties
- Duplex setups for continuous processes that cannot stop for bag changes
How to choose
- Calculate bag count from design flow and a conservative flow per bag
- Allow extra area for heavy or variable solids loads
- Specify connection size, pressure rating and seal materials
- Consider a duplex arrangement if the process must run continuously
- Plan access and lifting space for opening the lid and removing bags
Frequently asked questions
How many filter bags does the NWPL TMF housing hold?
The TMF multi-bag housing is available for 3 to 24 filter bags. The right number depends on design flow, solids loading and target change-out interval. More bags mean lower flow per bag, which lowers pressure drop and extends run time. Our engineers can size the housing from your flow and water data.
When is a multi-bag housing better than several single-bag housings?
A multi-bag housing puts all the filter area in one vessel with one inlet, one outlet and one set of instruments, so it needs less piping, fewer valves and less floor space than an equivalent bank of single housings. It is usually the simpler option once flow exceeds what one or two single-bag units can handle.
Can I change bags in a TMF housing without stopping the process?
Not in a single housing, since it must be isolated and depressurised to open it. For continuous processes, a duplex arrangement is common: two housings with changeover valves, where one runs while the other is serviced. We can design that arrangement around the TMF.
Technically reviewed by Prashant Dwivedi, Co-Founder & Director ·
