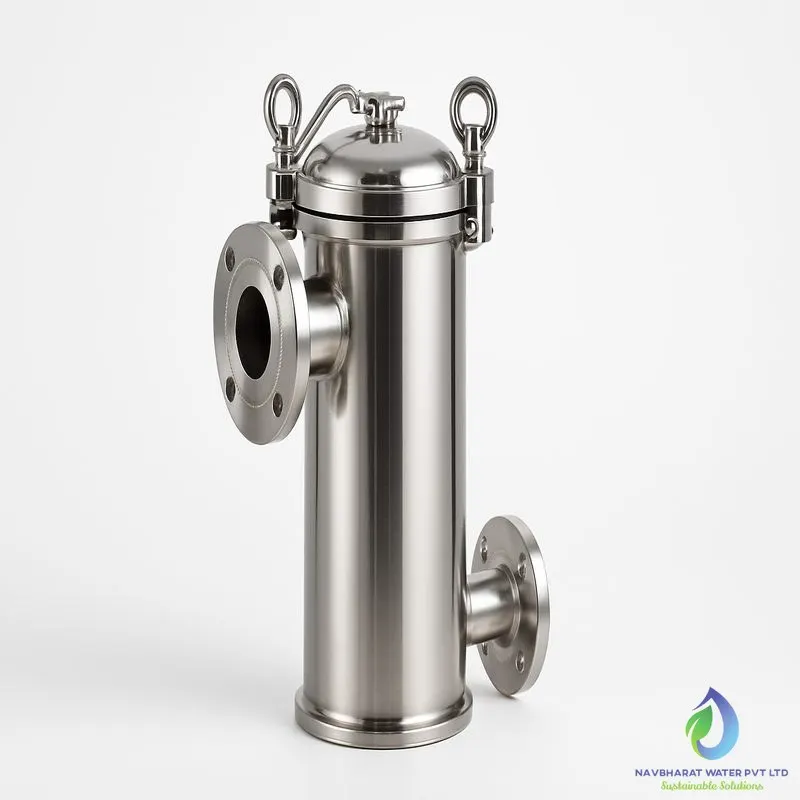

NWPL TFF 01/02 Side Inlet Filter Housing
Side in bottom out · Symmetrical bolt locking · Polished wall
TFF 01/02 side inlet, bottom outlet filtration. Good leak-proof symmetrical bolted locking with plastic ring seal. Polished wall prevents contamination precipitation. Clamp ring design for flexible bag gland.
Specifications
| Type | Side-in, bottom-out bag filter housing |
|---|---|
| Construction | Polished wall, symmetrical bolted locking, clamp ring bag gland |
| Features | Leak-proof, no contamination precipitation, adjustable feet |
| Brand | Navbharat Water (NWPL) |
| Country of Origin | Made in India |
| Certification | ISO 9001:2015 |
Where it's used
- Water & Wastewater Treatment
- Pharmacy
- Food & Beverages
- Paints, Coatings & Glue
- Petrochemical Engineering
- Electronic Technology
- Metal Processing
- Automobile Making
Related solutions
What it is and when to use it
The NWPL TFF 01/02 is a side-inlet, bottom-outlet single-bag filter housing. It is designed for dependable general-purpose filtration: symmetrical bolted locking with a plastic ring seal for leak-proof closure, a polished inner wall and a clamp ring that makes fitting and replacing the bag straightforward.
Liquid enters through the side of the vessel and leaves through the bottom after passing through the bag. This layout suits inline piping where the inlet and outlet cannot be stacked vertically, and it keeps the design compact and easy to operate.
The polished wall prevents contamination from precipitating on the vessel surface, which helps in food, beverage and chemical applications where deposits would be a problem. The clamp ring gives a flexible bag gland, holding the bag collar securely against the seal. Movable, adjustable support feet make installation simple. Choose the TFF 01/02 when you need a leak-tight, easy-to-clean housing for everyday bag filtration.
Use it for
- General-purpose single-bag filtration in plant piping
- Installations where a side inlet fits the pipe routing better than a top inlet
- Applications where a polished wall helps keep the vessel clean
- Sites that need a leak-tight bolted closure
How to choose
- Size from design flow, solids load and allowable pressure drop
- Confirm the bag size and material before finalising the housing
- Specify connection size, orientation and type for your pipeline
- Check pressure and temperature, and choose seals suited to the liquid
- Consider the TDF top-inlet housing if solids must stay in the bag during changes
Frequently asked questions
How does a side-inlet, bottom-outlet housing work?
Liquid enters through the side of the housing, flows into the filter bag and leaves through the bottom outlet after filtration. It is a compact arrangement that fits easily into horizontal pipelines. The TFF 01/02 combines this layout with bolted locking and a clamp ring bag gland for a secure seal.
Why does the TFF 01/02 have a polished inner wall?
A polished wall gives contaminants less surface to cling to, so deposits do not build up on the vessel and flake back into the filtered liquid. It also makes cleaning quicker. This is useful where product purity matters, such as food and beverage, pharmaceutical and fine chemical filtration.
What is the difference between the TFF 01/02 and TFF 03/04 housings?
Both are side-inlet, bottom-outlet designs. The TFF 01/02 adds a polished wall, symmetrical bolted locking with a plastic ring seal and a clamp ring bag gland. The TFF 03/04 is the more compact, economical model with a smaller volume for tight spaces and lower flows. Our team can help you match the model to your flow.
Technically reviewed by Prashant Dwivedi, Co-Founder & Director ·
